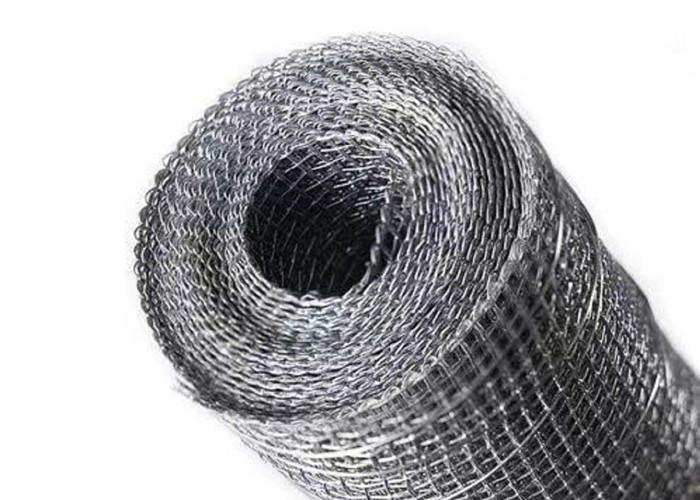

2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole

    Buy cheap 2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole from wholesalers

    Buy cheap 2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole from wholesalers
    • Buy cheap 2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole from wholesalers

    2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole

    Ask Lasest Price
    Brand Name : FUHANG
    Model Number : galvanized steel wire mesh
    Certification : ISO9001
    Price : USD $0.5-$5 Square Meter
    Payment Terms : L/C, T/T
    Supply Ability : 1000000 PIECE Per Month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole

    Galvanized Wire Mesh Glavanized Metal Mesh Glavanized Wire Cloth Galvanized Wire Weave Mesh

    Galvanized Wire Mesh is made of galvanized iron wire. It is also can be made of iron wire then zinc coating galvanized also can coated PVC. Galvanized Wire Mesh is commonly used as insect screening and sieves, industries, and constructions.

    Galvanizing can occur either before or after wire mesh is manufactured – both in woven form or welded form. Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.

    Galvanized after woven and galvanized after welded wire mesh is exactly as it sounds. The material is manufactured, normally in carbon or plain steel, and is often placed in a galvanizing tank, thereby producing a galvanized after woven or welded specification. Generally speaking, this option is more expensive, depending on availability and other variables, but does offer a higher level of corrosion resistance. This added level of corrosion resistance is most noticeable at the joint or intersection of galvanized after welded wire mesh specification.
    2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole
    2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole

    Weave Type
    Hot-dip galvanized after weaving wire mesh
    Hot-dip galvanized before weaving wire mesh
    Electric galvanized before weaving wire mesh
    Electric galvanized after weaving wire mesh
    Crimped square woven wire mesh

    Basic Info
    Woven Type: Plain Weave
    Mesh: 1.5-20 mesh, To accurately
    Wire Dia.: 0.45-1 mm, small deviation
    Width: 190mm, 915mm, 1000mm, 1245mm to 1550mm
    Length: 30m, 30.5m or cut to length minimum 2m
    Hole shape: Square Hole
    Wire Material: Galvanized wire
    Mesh Surface: clean, smooth, small magnetic.
    Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet
    Min.Order Quantity: 30 SQM
    Delivery Detail: 3-10 days
    Sample: Free Charge

    MeshWire Dia.(inches)Wire Dia.(mm)Openging(inches)Openging(mm)
    1.50.0391.0000.62715.933
    20.0391.0000.46111.700
    20.2366.0000.2646.700
    30.0240.6000.3107.867
    30.0631.6000.2706.867
    40.0160.4000.2345.950
    40.0591.5000.1914.850
    50.0140.3500.1864.730
    50.0591.5000.1413.580
    60.0140.3500.1533.883
    60.0591.5000.1082.733
    80.0120.3000.1132.875
    80.0471.2000.0781.975
    100.0120.3000.0882.240
    100.0471.2000.0531.340
    120.0120.3000.0721.817
    120.0471.2000.0360.917
    140.0080.2000.0641.614
    140.0280.7000.0441.114
    160.0080.2000.0551.388
    160.0240.6000.0390.988
    180.0080.2000.0481.211
    180.0180.4500.0380.961
    200.0080.2000.0421.070
    200.0180.4500.0320.820
