Stainless Steel Woven Wire Mesh Screen
Stainless steel woven wire mesh has better corrosion resistance and
longer service life than galvanized woven wire mesh. Although
galvanized woven mesh is economical and has similar uses with
stainless steel woven mesh, galvanized mesh cannot replace
stainless steel mesh in demanding environments, such as the
printing industry, ultra-fine mesh and high-precision filtration,
and the use environment that requires high strength and toughness.
Fuhang company offers various weave types of stainless steel woven
wire mesh screen to fulfill your requirements, including plain
weave, twill weave and Dutch weave, etc..
Material: AISI 302, 304, 304L, 316, 316L, 321, 310, 904L, etc.
Wire diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Mesh counts: 1-500 mesh
Opening in Micron: 1-20,000 microns
Types of Weave: Plain Weave, Twill Weave and Dutch Weave
Types: Available in cloth, panels and sheets.
Features: Precise opening, uniform mesh, excellent corrosion resistance,
strong and durable.
Plain & Twill Weave
Plain weave and twill weave stainless steel woven wire mesh screens
are commonly used for sieving, filtration, and security
applications. Plain weave is woven by passing the shute wire over
and under the warp wire successively, creating a square opening
mesh. Twill weave is woven by passing the shute wire over and under
two strands of warp wire, creating denser and sturdier meshes.
plain weave vs twill weave

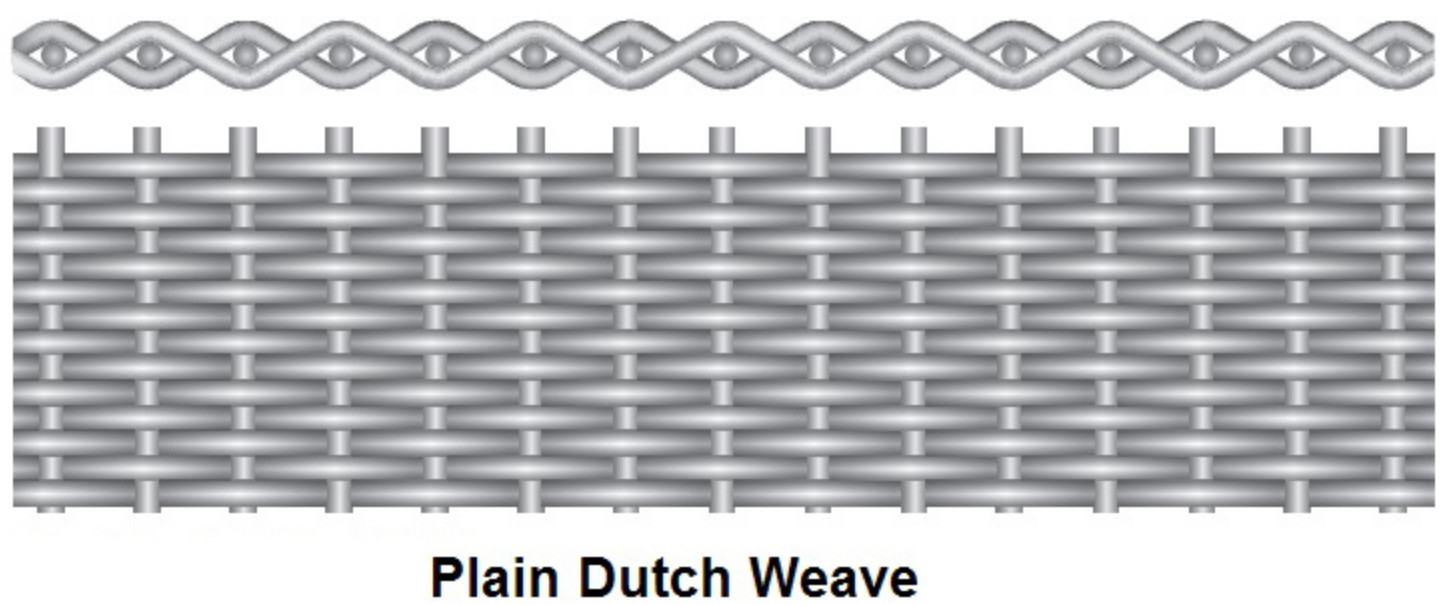

Plain Dutch Weave
Plain Dutch stainless steel woven wire mesh screen has a similar
weaving pattern as in plain, except the diameter of warp wire is
larger than shute wire.
Twill Dutch Weave
Twill Dutch weave stainless steel wire mesh screen combines the
weaving pattern of twill and Dutch, the larger diameter warp
successively passes over and under smaller diameter shute wire
creating a tight mesh that can withstand heavy pressure. Since
Dutch weave creates a stronger and more durable structure than
plain weave does, this type of mesh provides superior liquid
filtration capabilities and it is your ideal option for
petrochemical, aerospace, pharmaceutical, mining, and wastewater
treatment facilities.
Reverse Plain & Twilled Dutch Weave
Reverse Dutch weave stainless steel woven wire mesh screen also
uses two different sizes of wires in weaving but reversing the
method used in Dutch weave. The smaller wires are using in the warp
direction and are woven with a larger shute wire. The smaller wires
are woven as closely as possible to provide a finer and tighter
mesh for filtering. The larger wire is used to strengthen and
support the whole mesh.
