SS304 4F X100F 150 Mesh Stainless Steel Wire Mesh For Filter and
sieving
Stainless steel wire mesh, also known as wire cloth or wire fabric,
is renowned for its remarkable versatility. The distinguishing
characteristic of wire mesh is the matrix of wires that are
arranged at 90-degree angles.
Stainless steel wire mesh with its excellent resistance against
acid, alkali, heat and corrosion, find extensively uses in
processing of oil, chemical, food, making wire mesh filter, also
sorting and screening of solid, liquid and gas in mine, metallurgy,
airspace and machine making etc.
"Mesh" is the unit of specification for stainless steel wire mesh,
which refers to how many holes there are in a length of 1 inch
(25.4 mm). 150 mesh stainless steel wire mesh is 150 meshes in one
inch length. 150 mesh stainless steel wire mesh is also called 150
mesh filter cloth, 150 mesh filter screen, 150 mesh screen and so
on.It is widely used in petrochemical, marine, pharmaceutical and
other high-corrosion environments, aerospace, scientific research,
medical and other high-end fine industries, as well as food,
construction, mining and other fields, machinery manufacturing and
other industries.
The wire diameters suitable for the production of plain weave
150X150mesh stainless steel wire mesh are 0.07mm,0.065. The
following are detailed data about this product:
| Mesh | Construction Type | Wire Diameter (mm) | Width of Opening (mm) | % of Open Area | Weight (kgs/m2) |
| 150X150 | Plain Weave | 0.07 | 0.10 | 34.41% | 0.37 |
| 0.065 | 0.10 | 37.96% | 0.32 |

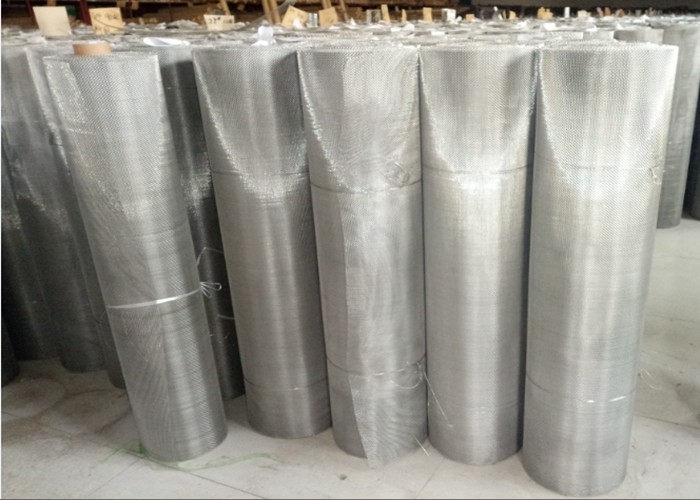

The widths we often produce are3F, 1 meter, 1.2 meters, 1.5meters,
1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length
of each roll is usually 30 meters and 100F. We can customize
special sizes according to your requirements.
Features:
1. Good acid resistance, alkali resistance and corrosion
resistance;
2. High strength, strong tensile force, toughness and abrasion
resistance, durable;
3. Resistant to high temperature oxidation.
4. Processing at room temperature, easy to make various shapes;
5. High smoothness, no need for surface treatment, convenient and
simple maintenance.
6. Material can easily bend by hand and cut with scissors or laser
7. Commonly used for laboratories and filters
8. This market grade mesh is woven from a standard wire diameter
which is heavier than the wire used to weave bolting cloth. Meets
ASTM E 2016-15 and UNS S30400
We can produce stainless steel wire mesh with stainless steel wire
material in SUS/AISI 201, 304,304L,310, 310S, 316, 316L ,MONEL ,321
etc.The relatively more used materials are 304 and 316.
Unlike other metals, stainless steel wire mesh is uniquely equipped
to resist rust and abrasion. Stainless steel wire mesh contains
chromium and nickel in addition to steel, increasing corrosion
resistance. It's also extremely durable, as well as heat and cold
resistant. Keep in mind stainless steel is non-magnetic in the
annealed condition. After stainless steel wire mesh has been woven,
it may become slightly magnetic due to cold working.
Stainless steel wire mesh is available in two basic types of metal
alloys:
| T-304 Stainless Steel-Standard Chemical Composition |
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Maximum Nitrogen (N) |
0.08 %
| 2.0 %
| 0.045 %
| 0.03 %
| 1.00 %
| 18.00 to 20.00 % | 8.00 to 10.50 % | 0.10 % |
T-304is the basic stainless alloy, containing 18 percent chromium
and 8 percent nickel. It's not as corrosion resistant as T-316, but
it's acceptable (and more affordable) for most uses, unless
otherwise specified.
Although it melts at 2,600 degrees F (1430 degrees C), it’s best
for use at 1450 degrees F (790 degrees C) for continuous service
and 1650 degrees F (900 C) for intermediate service. Its uses
include sorting and screening of abrasives, liquids, powders and
other solids. |
| T-316 Stainless Steel-Standard Chemical Composition |
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 | 2.0 %
| 0.045 %
| 0.03 %
| 1.00 %
| 16.00 to 18.00 % | 10.00 to 14 % | 2.0 to 3.0 % |
T-316is a special stainless alloy, which contains 18 percent
chromium and 10 percent nickel, as well as 2 percent molybdenum.
This combination enables the mesh to resist corrosion from salts,
acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended
temperature for continuous service is 1500 degrees F. (815 C) and
is useful for intermediate service up to 1650 degrees F (900 C).
Its uses include processing oils and foods, chemicals, and
pharmaceuticals. |
The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is
generally recognized that 316 has better corrosion resistance and
is more resistant to corrosion in high temperature environments
than 304. Therefore, in high-temperature environments, engineers
generally choose 316 stainless steel wire mesh.
Some of the more popular applications and industries that use
150X150mesh stainless steel wire mesh are listed below:
Sifting and sizing
Filtration and separation
RFI and EMI shielding
Process screens and centrifuge screens
Air and water filters
Dewatering, solids/liquid control
Waste treatment
Filters and strainers for air, oil, fuel and hydraulic systems
Fuel cells and mud screens
Separator screens and cathode screens
We can cut stainless steel wire mesh into different shapes and
sizes according to your needs, such as rectangular mesh, square
mesh, round and oval mesh. It can also be processed into other
shapes of filters.
Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof
plastic sheet, and then packed into a fumigation-free wooden box.
When ordering or requesting a quote for plain weave wire mesh,
please specify:
Number of length 30 m for 1 m wide rolls or size required
Mesh eg. 150 mesh
Diameter of wire eg. 0.065 mm
Aperture eg. 0.10mm
Material eg. Grade 304
