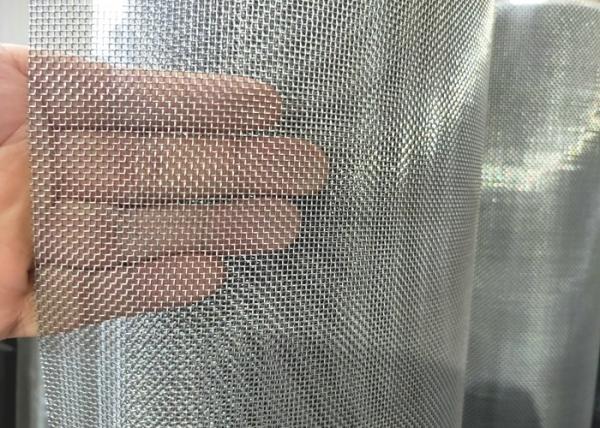

T-304 4F X 100F Square Hole 12X12 Mesh Stainless Steel Wire Cloth
For Sieving
The wire diameters suitable for the production of 12X12mesh
stainless steel wire woven mesh are 0.041In.,0.035In., 0.032In.
,0.028In., 0.025In., 0.023In., 0.020In., 0.018In., 0.016In., The
following are detailed data about this product:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
12X12
|
| 0.041 Inch | 0.042 Inch | 25.81% | 1.475 lb/ft² |
| 0.035 Inch | 0.065 Inch | 42.25% | 0.851 lb/ft² |
| 0.032 Inch | 0.051 Inch | 37.95% | 0.863 lb/ft² |
| 0.028 Inch | 0.055 Inch | 44.09% | 0.651 lb/ft² |
| 0.025 Inch | 0.058 Inch | 49.00% | 0.514 lb/ft² |
| 0.023 Inch | 0.060 Inch | 52.42% | 0.432 lb/ft² |
| 0.020 Inch | 0.063 Inch | 57.76% | 0.324 lb/ft² |
| 0.018 Inch | 0.065 Inch | 61.47% | 0.261 lb/ft² |
| 0.016 Inch | 0.067 Inch | 65.29% | 0.205 lb/ft² |
| T304 Stainless Steel-Standard Chemical Composition |
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Maximum Nitrogen (N) |
0.08 %
| 2.0 %
| 0.045 %
| 0.03 %
| 1.00 %
| 18.00 to 20.00 % | 8.00 to 10.50 % | 0.10 %
|
304 stainless steel is a common material in stainless steel, with a
density of 7.93 g/cm³, which is also called 18/8 stainless steel in
the industry. High temperature resistance of 800℃, good processing
performance and high toughness. 304 is a versatile stainless steel, which is widely used to make
equipment and parts that require good overall performance
(corrosion resistance and formability). In order to maintain the
inherent corrosion resistance of stainless steel, steel must
contain more than 18% chromium and more than 8% nickel. |
Features:
1. High temperature resistance, oxidation resistance, acid and
alkali resistance
2. Precise filtration, uniform mesh, good toughness
3. Smooth surface, no need for surface treatment, easy maintenance;
4. High strength, good tensile strength
Some of the more popular applications and industries that use T-304
12X12mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali
environmental conditions, as a sieving net in the petroleum
industry, and as a sieving net in the chemical and chemical fiber
industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery
manufacturing and other industries.
3. Used for screening and filtering under acid and alkali
environmental conditions, as a mud mesh in the petroleum industry,
as a screen in the chemical and chemical fiber industry, and as a
pickling mesh in the electroplating industry.
