Stainless steel wire mesh, stainless steel fabric, twilled dutch
weave wire cloth, filter mesh
Stainless steel wire mesh/fabric is produced in twilled dutch
weave, this kind of woven mesh is light tight woven mesh, it is
finer filtration than plain dutch weave. twilled dutch weave wire
mesh are the most widely wire mesh used in the heavy duty
filtration industries.
We can offer twilled dutch weave stainless steel wire mesh in
various specifications, the apertures range from 3 µm to 101 µm,
and wire mesh roll widths are between 0.1 m and 1.5 m. The standard
materials are grade 304, grade 316 and grade 316L stainless steel.
For twilled dutch weave stainless steel wire mesh,warp wires of
larger diameters are interwoven with a wider pitch than weft wire,
the warp wire passes over two and under two weft wires, as in
normal twilled weave, producing a very strong and firm cloth.
Twilled dutch weave stainless steel wire mesh materials
Twilled dutch weave stainless steel wire mesh is available in three
different series of wire materials:
Stainless steel 200 series: Grade 201, Grade 202
Stainless steel T 300 series: Grade 304, Grade 304L, Grade 316,
Grade 316L, Grade 321
Stainless steel 400 series: Grade 410, Grade 420, Grade 430
Benefits
High pressure filtration
Very low absolute accuracy > 3 µm
Tight mesh and high resistance
Very strong and firm cloth
High level of flow and minimal pressure drop
Application
Dutch weave stainless steel wire mesh is mainly used for gas liquid
filtration and other medium’s separation. Widely used in precision
pressure filter fuel filter vacuum filter. Can be filter material
and applied to aerospace petroleum chemical chemical fiber rubber
tire manufacturing metallurgy medicine food scientific
researchscreening gravel in building constructionheat sink
devicetextile machineryhighly processed products conveying and many
other industries.

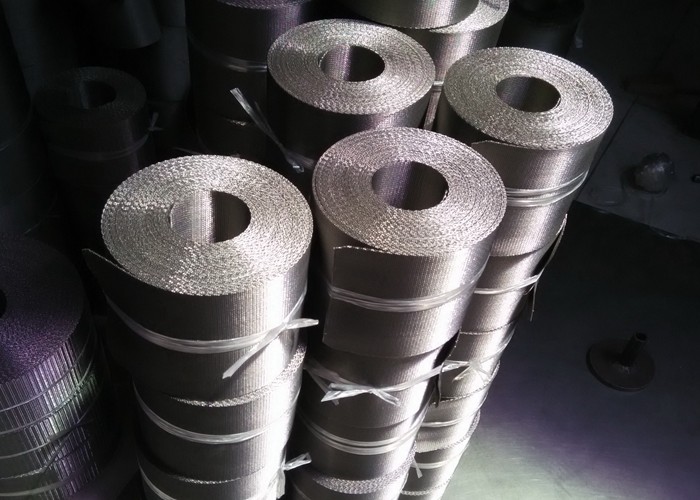

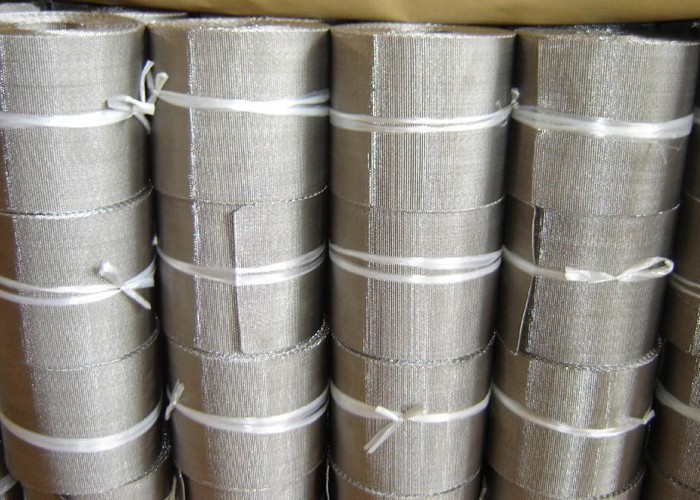

Twilled dutch mesh rolls
Roll length: standard size is 30m in length. And also can cut to
requested size as customers’ requirement
Width 1 m can cut to 0.1 m and 0.15m for 10 m long rolls
Other rolls size on request
When ordering or requesting a quote for twilled dutch weave wire
mesh, please specify:
Number of length 30 m for 1 m wide rolls or size required
Mesh eg. 325 x 2300 mesh
Diameter of wire eg. 0.036 x 0.024 mm
Aperture eg. 4 µm
Material eg. Grade 316L
