Welded Mesh Gabion 2 X 2 Welded Wire Mesh 10 Gauge Welded Wire Mesh

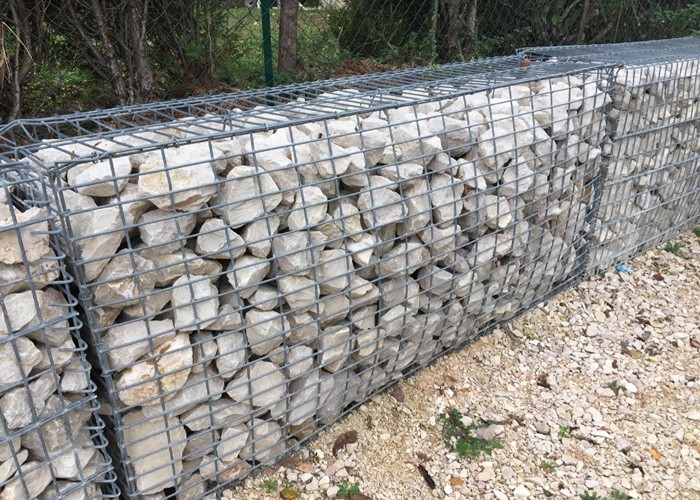

Welded Mesh Gabion are manufactured from cold drawn steel wire and
strictly conform to
BS1052:1986 for tensile strength. welded mesh gabions are
manufactured from a square mesh, normally of opening size 75.0mm ×
75.0mm where the longitudinal wires are welded to the cross wires
at their intersection points.
This type of fabric manufacture produces a dimensionally stable
mesh. The mesh is produced in standard sheets which are then cut
into the required panel sizes (and partially factory-connected) to
form the flat pack unit. The meshes can then be organic polymer
coated to safeguard against corrosion and other weathering effects,
especially when the are to be used in salty and highly polluted
environments. Our Alu-Zinc* mesh is coated using the Galfan
process.
Welded mesh gabions can be readily modified on site by cutting the
mesh back to the next transverse mesh wire. Welded mesh gabions are
available in a number of wire diameters to suit the application or
can be manufactured in a combination of mesh-wire specifications to
provide economy in supply. The resultant gabions’ flexibility is
dependant upon the choice of wire diameter.
Where two types of stone fill are required, additional loose panels
can be supplied and fitted on site to separate the two types of
fill materials.
The mesh can be specified as either Galfan coated or Galfan coated
with an external organic polymer powder (PVC) coating, as required
by design.
Wire Sizes Available:
Galfan Coated – 3mm, 4mm, 5mm
Galfan/PVC – 2.7mm/3.2mm overall, 3.8mm/4.3mm overall
Tensile Strength (wire):
Welded: 540 to 770 N/mm²
Weld Strength: 75% of the minimum ultimate tensile strength of the
wire
Usages:
Welded wire gabion has a wide usage, it is widely used in industry,
construction, transportation, mining, sport field, grassland and
breeding as fence, decoration, machine guards and so on. Good
quality. competitive price. efficient service and about thirty
years experiences. These advantages have enable us to be one of the
most reliable suppliers of wire mesh in Anping County. And we have
established regular business relationship with many customers.
