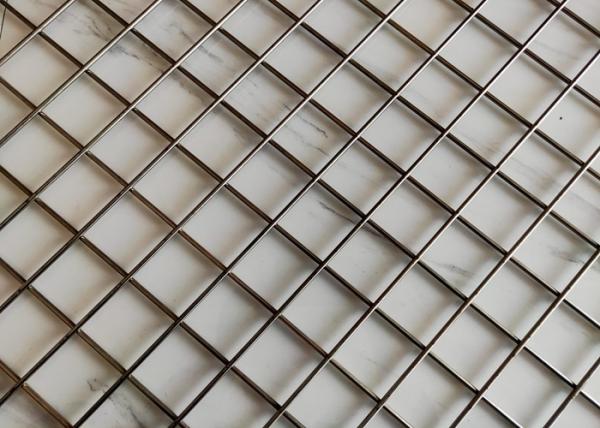

T-304/316 2" x 2" Opening Stainless Steel Welded Wire Mesh for Protection
Welded wire mesh specifications are commonly used in a wide array
of industrial and non-industrial applications, including animal
caging, critter and varmint control, agricultural use, air vents,
basket fabrication, food applications, aviary and bird screen,
industrial separation fan and machine guards, security retention,
basket fabrication, industrial separation and soffit screens.
Stainless steel welded wire mesh is an extremely popular and
versatile item that many different customers use for many different
applications. Our company specializes in supplying high quality
stainless steel welded wire mesh.
We can produce stainless steel welded wire mesh with apertures
ranging from 4 inches to 1/4 inches. The following is the data
about the 2 inch stainless steel welded wire mesh:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
| 2 in. Open | Welded | 0.250 in | 1.750 in | 76.56 % | 2.066 lb/ft² |
| 0.192 in | 1.808 in | 81.72 % | 1.215 lb/ft² |
| 0.187 in | 1.813 in | 82.17 % | 1.152 lb/ft² |
| 0.162 in | 1.838 in | 84.46 % | 0.864 lb/ft² |
| 0.148 in | 1.852 in | 85.75 % | 0.720 lb/ft² |
| 0.135 in | 1.865 in | 86.96 % | 0.599 lb/ft² |
| 0.120 in | 1.880 in | 88.36 % | 0.473 lb/ft² |
| 0.105 in | 1.895 in | 89.78 % | 0.362 lb/ft² |
| 0.080 in | 1.920 in | 92.16 % | 0.210 lb/ft² |
| 0.063 in | 1.937 in | 93.80 % | 0.130 lb/ft² |
We mainly provide stainless steel welded wire mesh made of
stainless steel 304, 316, and 201. Among them, T-304 and T-316 are
the two most important materials.
| T304 Stainless Steel-Standard Chemical Composition |
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Maximum Nitrogen (N) |
0.08 %
| 2.0 %
| 0.045 %
| 0.03 %
| 1.00 %
| 18.00 to 20.00 % | 8.00 to 10.50 % | 0.10 % |
| 304 stainless steel is the most widely used chromium-nickel
stainless steel. As a widely used steel, it has good corrosion
resistance, heat resistance, low temperature strength and
mechanical properties; it has good hot workability such as stamping
and bending without heat treatment. Hardening phenomenon (use
temperature -196℃～800℃). It is resistant to corrosion in the
atmosphere. If it is an industrial atmosphere or heavily polluted
area, it needs to be cleaned in time to avoid corrosion. It is
suitable for food processing,storage and transportation. Has good
processing properties and weldability. |
| T316 Stainless Steel-Standard Chemical Composition |
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 | 2.0 %
| 0.045 %
| 0.03 %
| 1.00 %
| 16.00 to 18.00 % | 10.00 to 14 % | 2.0 to 3.0 % |
Like virtually all wire mesh and wire cloth, stainless steel welded
wire mesh lends itself for use in architectural, agricultural,
commercial and industrial applications. Here are a handful of
popular uses for T-304 stainless steel and T-316 stainless steel
welded wire mesh:
- Infill panel & railing systems
- Industrial fan & machine guards
- Security enclosures
- Animal retention (cages)
- Small critter control
- Decorative signage
- Room dividers
- Wall cladding
- Ceiling panels
- Air vents & soffit screens
- Basket fabrication
- Food applications
- Racking & storage
- Aviary & bird screen
- Industrial separation
