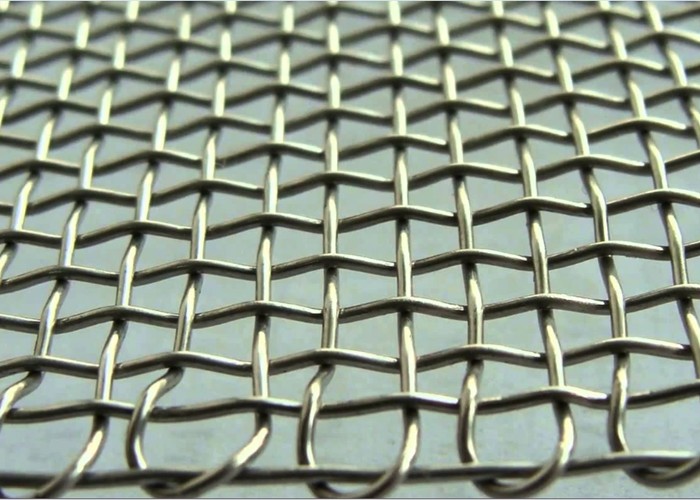

316 / 304 Stainless Steel Woven Wire Mesh
Stainless steel wire mesh, also known as wire cloth or wire fabric,
is renowned for its remarkable versatility. The distinguishing
characteristic of wire mesh is the matrix of wires that are
arranged at 90-degree angles. We can produce stainless steel wire
mesh with stainless steel wire material in SUS/AISI 201, 202,
304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.
Stainless steel wire mesh with its excellent resistance against
acid, alkali, heat and corrosion, find extensively uses in
processing of oil, chemical, food, making wire mesh filter, also
sorting and screening of solid, liquid and gas in mine, metallurgy,
airspace and machine making etc.
Features
- 4 wires per inch
- Material is hard to bend by hand and can be cut with tin snips or
aircraft shears
- Commonly used for air vents and filters
- This sturdy market grade mesh is woven from a standard wire
diameter which is heavier than the wire used to weave bolting cloth
Product infomation:
(1) product range : usually,manufactured in 30m ( up to 200) long
and in width of 36``, 48``, 1m, 1.2m, 1.5m, 2.0m etc. or cut to
length panels as per client’s requirement.
(2) Packing: water-proof paper ,woven bag and also can be made as
per client requirement
(3) weave:This type of mesh is available in Plain Weave, Twill
Weave ; Plain Dutch Weave, Dutch Twill Weave.
(4) mesh counts: 1 mesh to 635 mesh.
(5) sample: available.
Benefits
Stainless steel wire mesh has excellent corrosion resistance
Square hole and accurate mesh size
Wire diameter and mesh with ratio reasonable
Wear-resistant and firm in structure
High opening rate and low pressure loss
Non magnetic in the annealed condition
Good air permeability, high flow rate
With an abundant stock
Ⅰ. Plain Weave Stainless Steel Wire Mesh Mesh
| Mesh Count per Inch | Wire Diameter (mm) | Aperture Size (mm) | Open Area | Weight for Stainless Steel (kg/sq m) | | 2 | 1.8 | 10.9 | 74% | 3.22 | | 2 | 1.6 | 11.1 | 76% | 2.54 | | 2 | 1.4 | 11.3 | 79% | 1.95 | | 3 | 2 | 6.467 | 58% | 5.96 | | 3 | 1.8 | 6.667 | 62% | 4.83 | | 3 | 1.6 | 6.867 | 66% | 3.82 | | 3 | 1.4 | 7.067 | 70% | 2.92 | | 4 | 2 | 4.35 | 47% | 7.95 | | 4 | 1.8 | 4.55 | 51% | 6.44 | | 4 | 1.6 | 4.75 | 56% | 5.09 | | 4 | 1.4 | 4.95 | 61% | 3.89 | | 4 | 1.2 | 5.1 | 65% | 3.11 | | 4 | 1 | 5.35 | 71% | 1.99 | | 4 | 0.9 | 5.45 | 74% | 1.61 | | 5 | 1.2 | 3.83 | 57% | 3.88 | | 5 | 1 | 4.08 | 65% | 2.48 | | 6 | 1.6 | 2.633 | 39% | 7.63 | | 6 | 1.4 | 2.833 | 45% | 5.84 | | 6 | 1.2 | 3.033 | 51% | 4.29 | | 6 | 1 | 3.233 | 58% | 2.98 | | 6 | 0.9 | 3.333 | 62% | 2.41 | | 6 | 0.8 | 3.433 | 66% | 1.91 | | 6 | 0.71 | 3.523 | 69% | 1.5 | | 8 | 1.25 | 1.925 | 37% | 6.21 | | 8 | 1.12 | 2.055 | 42% | 4.99 | | 8 | 1 | 2.175 | 47% | 3.97 | | 8 | 0.9 | 2.275 | 51% | 3.22 | | 8 | 0.8 | 2.375 | 56% | 2.54 | | 8 | 0.71 | 2.465 | 60% | 2 | | 8 | 0.63 | 2.545 | 64% | 1.58 | | 8 | 0.56 | 2.615 | 68% | 1.25 | | 10 | 0.9 | 1.64 | 42% | 4.02 | | 10 | 0.8 | 1.74 | 47% | 3.18 | | 10 | 0.71 | 1.83 | 52% | 2.5 | | 10 | 0.63 | 1.91 | 57% | 1.97 | | 10 | 0.56 | 1.98 | 61% | 1.56 | | 10 | 0.5 | 2.04 | 65% | 1.24 | | 12 | 0.8 | 1.317 | 39% | 3.82 | | 12 | 0.71 | 1.407 | 44% | 3.01 | | 12 | 0.63 | 1.487 | 49% | 2.37 | | 12 | 0.56 | 1.557 | 54% | 1.87 | | 12 | 0.5 | 1.617 | 58% | 1.49 | | 12 | 0.45 | 1.667 | 62% | 1.21 | | 14 | 0.56 | 1.254 | 48% | 2.18 | | 14 | 0.5 | 1.314 | 52% | 1.74 | | 14 | 0.45 | 1.364 | 57% | 1.41 | | 14 | 0.4 | 1.414 | 61% | 1.11 | | 14 | 0.355 | 1.459 | 65% | 0.88 | | 14 | 0.315 | 1.499 | 68% | 0.69 | | 16 | 0.63 | 0.958 | 36% | 3.15 | | 16 | 0.56 | 1.028 | 42% | 2.49 | | 16 | 0.5 | 1.088 | 47% | 1.99 | | 16 | 0.45 | 1.138 | 51% | 1.61 | | 16 | 0.4 | 1.188 | 56% | 1.27 | | 16 | 0.355 | 1.233 | 60% | 1 | | 16 | 0.315 | 1.273 | 64% | 0.79 | | 18 | 0.236 | 1.175 | 83% | 0.5 | | 20 | 0.56 | 0.71 | 31% | 3.12 | | 20 | 0.5 | 0.77 | 37% | 2.48 | | 20 | 0.45 | 0.82 | 42% | 2.01 | | 20 | 0.4 | 0.87 | 47% | 1.59 | | 20 | 0.355 | 0.915 | 52% | 1.25 | | 20 | 0.315 | 0.955 | 57% | 0.99 | | 24 | 0.45 | 0.608 | 33% | 2.41 | | 24 | 0.355 | 0.703 | 44% | 1.5 | | 24 | 0.315 | 0.743 | 49% | 1.18 | | 28 | 0.355 | 0.552 | 37% | 1.75 | | 28 | 0.315 | 0.592 | 43% | 1.38 | | 30 | 0.355 | 0.492 | 34% | 1.88 | | 30 | 0.315 | 0.532 | 39% | 1.48 | | 30 | 0.28 | 0.567 | 45% | 1.17 | | 30 | 0.25 | 0.597 | 50% | 0.93 | | 30 | 0.224 | 0.623 | 54% | 0.75 | | 36 | 0.25 | 0.456 | 42% | 1.12 | | 36 | 0.224 | 0.482 | 47% | 0.9 | | 36 | 0.212 | 0.494 | 49% | 0.8 | | 40 | 0.224 | 0.411 | 42% | 1 | | 40 | 0.212 | 0.435 | 47% | 0.79 | | 40 | 0.19 | 0.445 | 49% | 0.72 | | 40 | 0.132 | 0.503 | 79% | 0.35 | | 50 | 0.21 | 0.298 | 34% | 1.1 | | 50 | 0.2 | 0.308 | 37% | 0.99 | | 50 | 0.19 | 0.318 | 39% | 0.9 | | 50 | 0.16 | 0.348 | 47% | 0.64 | | 50 | 0.15 | 0.358 | 50% | 0.56 | | 60 | 0.18 | 0.243 | 33% | 0.97 | | 60 | 0.16 | 0.263 | 39% | 0.76 | | 60 | 0.14 | 0.283 | 45% | 0.58 | | 70 | 0.15 | 0.213 | 34% | 0.78 | | 70 | 0.14 | 0.223 | 38% | 0.68 | | 70 | 0.125 | 0.238 | 43% | 0.54 | | 80 | 0.14 | 0.178 | 31% | 0.78 | | 80 | 0.125 | 0.193 | 37% | 0.62 | | 100 | 0.112 | 0.142 | 31% | 0.62 | | 100 | 0.1 | 0.154 | 37% | 0.5 | | 100 | 0.09 | 0.164 | 42% | 0.4 | | 100 | 0.08 | 0.174 | 47% | 0.32 | | 120 | 0.09 | 0.122 | 33% | 0.48 | | 120 | 0.08 | 0.132 | 39% | 0.38 | | 120 | 0.065 | 0.147 | 48% | 0.25 | | 140 | 0.08 | 0.101 | 31% | 0.45 | | 150 | 0.071 | 0.098 | 34% | 0.38 | | 150 | 0.065 | 0.109 | 42% | 0.27 | | 165 | 0.05 | 0.104 | 46% | 0.2 | | 180 | 0.06 | 0.081 | 33% | 0.32 | | 180 | 0.05 | 0.091 | 42% | 0.22 | | 200 | 0.05 | 0.077 | 37% | 0.25 | | 200 | 0.04 | 0.087 | 47% | 0.16 | | 230 | 0.036 | 0.074 | 45% | 0.15 | | 250 | 0.04 | 0.062 | 37% | 0.2 | | 270 | 0.04 | 0.054 | 33% | 0.21 | | 270 | 0.036 | 0.058 | 38% | 0.17 | | 300* | 0.04 | 0.045 | 28% | 0.24 | | 300* | 0.036 | 0.055 | 42% | 0.13 | | 325* | 0.036 | 0.042 | 29% | 0.21 | | 325 | 0.028 | 0.05 | 41% | 0.13 | | 350* | 0.03 | 0.043 | 34% | 0.16 | | 400* | 0.03 | 0.034 | 27% | 0.18 | | 500* | 0.025 | 0.026 | 26% | 0.16 |
|
Ⅱ. Dutch Weave Stainless Steel Wire Mesh
| Mesh | Wire Diameter | Weave | | Warp | Shute | | in | mm | in | mm | | 12x64 | 0.023 | 0.58 | 0.0165 | 0.42 | Plain | | 14x88 | 0.019 | 0.48 | 0.012 | 0.30 | Plain | | 14x110 | 0.016 | 0.40 | 0.011 | 0.28 | Plain | | 24x110 | 0.014 | 0.355 | 0.010 | 0.25 | Plain | | 16X200 | 0.014 | 0.355 | 0.010 | 0.25 | Twill | | 30X150 | 0.009 | 0.23 | 0.007 | 0.18 | Plain | | 20X200 | 0.0135 | 0.34 | 0.011 | 0.28 | Twill | | 40X200 | 0.007 | 0.18 | 0.0055 | 0.14 | Plain | | 20X300 | 0.010 | 0.25 | 0.007 | 0.18 | Twill | | 30X250 | 0.010 | 0.25 | 0.008 | 0.20 | Twill | | 20X350 | 0.010 | 0.25 | 0.006 | 0.15 | Twill | | 20X250 | 0.010 | 0.25 | 0.0082 | 0.21 | Twill | | 50X600 | 0.007 | 0.18 | 0.0035 | 0.09 | Twill | | 28X400 | 0.007 | 0.18 | 0.005 | 0.13 | Twill | | 50X250 | 0.0055 | 0.14 | 0.0045 | 0.11 | Plain | | 28X500 | 0.007 | 0.18 | 0.0045 | 0.11 | Twill | | 50X700 | 0.0055 | 0.14 | 0.003 | 0.076 | Twill | | 80X700 | 0.004 | 0.10 | 0.003 | 0.076 | Twill | | 100X1000 | 0.004 | 0.10 | 0.002 | 0.051 | Twill | | 165X800 | 0.0028 | 0.071 | 0.002 | 0.05 | Twill | | 165X1400 | 0.0028 | 0.071 | 0.0016 | 0.04 | Twill | | 200X1400 | 0.0028 | 0.071 | 0.0016 | 0.04 | Twill | | 325X2300 | 0.0014 | 0.035 | 0.001 | 0.025 | Twill |
|
ABOUT OUR COMPANY
Anping County Fuhang Wire Mesh Products Company Limited is located
in Anping County, Hebei Province, China. Fuhang Wire Mesh is a
specialized manufacturer and exporter of metal wire mesh products.
Capable of providing successfully top-quality wire mesh products
and services for purchasers from over 50 countries and regions.
Fuhang Wire Mesh introduces updated technology and exquisite
process while adopting exquisite and sensible process flow. We have
the complete testing and measuring equipment, ensuring the stable
and reliable quality of the products. In one word, we are ready to
supply our customers with good quality products and service in
accordance with their requirements.
