Galvanized Chain Link Mesh Fence Chain Link Mesh Fencing Galvanized
Chain Link Fence
Galvanized hot-dipped zinc coating chain link mesh fence is the
most popular and inexpensive method for protecting chain-link fence
systems. It is made from galvanized wire. Preferred for decades to
define property lines and protect property, galvanized chain-link
offers a versatile fencing solution that will provide years of
maintenance-free protection. Galvanized chain link mesh fencing
system all the steel components are hot-dipped zinc coated and can
be used for 15years.
Application
Galvanized chain link mesh fence is widely used in construction,
industrial and agricultural for a variety of purposes:
· Creation of fences and barriers on the yard or garden.
· Separation of bulk materials in construction.
· Creation of exterior and interior trim before plastering.
· Chain link mesh for slope vegetation.
· Used for poultry fencing, Galvanized chain link fence is a kind
of chew proofing fence, and it suitable for big dog cage. If you
use polyvinyl fence, dog may chews the polyvinyl.
Hot Dipped Galvanized chain link mesh fence panels for temporary fencing .
Specifications: chain link mesh fence opening 5 cm, gauge 11 BWG,
panel size 6' × 10', round pipe of 32 mm diameter gauge 9 BWG, one
more pipe welded along width of panel (6') in middle of length of
pipe frame (i.e. 5') round pipe 25 mm gauge 9 BWG. vertical pipe at
both end of frame should be 1.5"-2" out on both side.
Made from galvanized low carbon steel wire, galvanized chain link
mesh fence has the features of resistance to moisture, corrosion resistance, excellent
resistance to sudden temperature changes and high durability.
Hot dip galvanized chain link fence specifications
· Wire diameter: 2.70 mm - 4.0 mm.
· Mesh size: 30 mm × 30 mm, 40 mm × 40 mm, 50 mm × 50 mm, 100 mm × 100 mm.
· Width: 1 m, 1.5 m, 2.0 m, 2.5 m, 5 m.

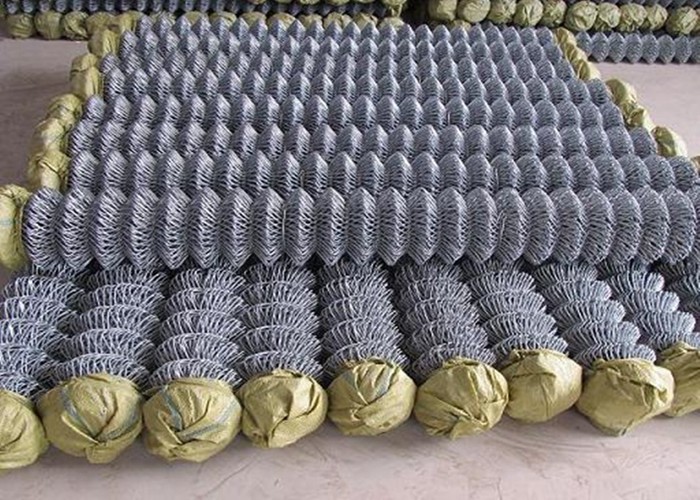

· Package: 20 m/roll, 25 m/roll, 30 m/roll, 50 m/roll, 100 m/roll, or 35
kg/roll, 50 kg/roll.
| General characteristics of chain link mesh fences with zinc (Z) or zinc alloy (ZA) coated mesh |
| Items | Steel post with zinc, zinc alloy coating | Posts height
(m) | Pattern | Chain link fencing | Line wires (3 rows line wires) | Suitable uses |
Roll width
(m) | Size mesh
(mm) | Wire diameter
(mm) | Spacing
(mm) | Nominal diameter |
Low carbon mild steel
(mm) | High tensile Steel
(mm) |
FH-90
FH-90A | 90
90A | 0.90
0.90 | Medium Heavy | 0.90
0.90 | 50
50 | 2.50
3.00 | 430
430 | 3.00
3.55 | 3.15
3.15 | House garden fronts and divisions |
FH-120
FH-120A | 120
120A | 1.20
1.20 | Heavy Extra heavy | 1.20 1.20 | 50
50 | 3.00
3.55 | 580
580 | 3.55
4.00 | 3.15
3.15 | Playgrounds, general purposes |
FH-140
FH-140A | 140
140A | 1.40
1.40 | Medium Heavy | 1.40 1.40 | 50
50 | 2.50
3.00 | 680
680 | 3.00
3.55 | 3.15
3.15 | General purposes, railways, house garden flanks, highways |
| FH-140B | 140B | 1.40 | Extra heavy | 1.40 | 50 | 3.55 | 680 | 4.00 | 3.15 | Playing fields, recreation grounds |
FH-140C
FH-140C | 140C
140D | 1.40
1.40 | Medium
Heavy | 1.40 1.40 | 40
40 | 2.50
3.00 | 680
680 | 3.00
3.55 | 3.15
3.15 | Railways, general purposes |
FH-180
FH-180A | 180
180A | 1.80
1.80 | Heavy
Extra heavy | 1.80 1.80 | 50
50 | 3.00
3.55 | 880
880 | 4.00
3.00 | 3.15
3.15 | Commercial property |
| FH-180B | 180B | 1.80 | Heavy | 1.80 | 40 | 3.00 | 880 | 3.55 | 3.15 | Railways, general safety |
FH-180C
FH-180D | 180C
180D | 1.80
1.80 | Heavy
Extra heavy | 1.80 1.80 | 50
50 | 3.00
3.55 | 880
880 | 3.55
4.00 | 3.15
3.15 | Industrial security |
| FH-180 | 180E | 1.80 | Heavy | 1.80 | 40 | 3.00 | 880 | 3.55 | 3.15 | Railways, general safety |
FH-215
FH-215A | 215
215A | 2.15
2.15 | Heavy
Extra heavy | 2.15 2.15 | 50
50 | 3.00
3.55 | 1055 1055 | 3.55
4.00 | 3.15
3.15 | Commercial property |
| FH-215B | 215B | 2.15 | Heavy | 2.15 | 40 | 3.00 | 1055 | 3.55 | | Railways, general safety |
FH-215C
FH-215D | 215C
215D | 2.15
2.15 | Heavy
Extra heavy | 2.15 2.15 | 50
50 | 3.00
3.55 | 1055
1055 | 3.55
4.00 | 3.15
3.15 | Industrial security |
| FH-215E | 215E | 2.15 | Heavy | 2.15 | 40 | 3.00 | 1055 | 3.55 | 3.15 | Railways, general safety |
Note: · Post Heights are of the main infill material, and exclude any
ground clearance at the base, or additional height provided by
extension arms for barbed wire. · Post height more than 1.80 m (include 1.80 m), the top of the
fence may be barbed. And the fence shall have cranked extension
arms with barbed wire, increasing the height by approx. 340 mm. |
