H-Type Cable And Rod Combination Mesh Decorative Curtains Mesh For
Construction

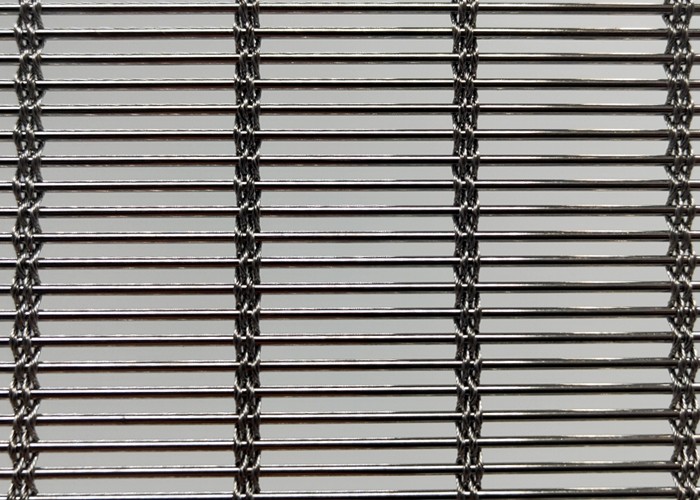

H-Type mesh cable and rod combination mesh (HCR mesh), facade mesh
We have been engaged in the production of H-Type mesh cable and rod
combination mesh for 15 years. H-Type mesh cable and rod
combination mesh (HCR mesh) is produced by special weaving machine
with single or multiple cable wire (warp wire ) and straight rod
(weft wire), the cable wire create flexibility, while the rod
provide stability for the metal mesh.
This structure allows the material to stretch while maintaining the
same plane stiffness in the other. The material has unlimited
durability, can bear the stress and deformation without damage. The
H-Type mesh cable and rod combination mesh is widely used in large
facades and wall cladding installations.
We can offer H-Type cable and rod combination mesh in the standard
specifications, the opening sizes range from 2 mm x 1 mm to 100 mm
x 10 mm, while cable diameters range from 0.45 mm to 3 mm, and rod
diameter is between 0.5 and 4 mm, the manufactured width is up to 8
m. The wire mesh is commonly constructed with materials of
stainless steel ,brass, phosphor bronze. Stainless steel material
has the best reflectivity and durability, so we mainly use
stainless steel material.
Benefits
Strong, durable and flexible construction
Certain protection and safe
Ventilation, light transmission and sound absorption
Fashion and versatility
Easy to install and low maintenance
Elegant, upscale and unique style
H-Type cable and rod combination mesh materials
H-Type cable and rod combination mesh is in two different series of
wire materials:
Stainless steel: 201,304, 316, 321, 310,310S
Copper: brass, pure copper, phosphor bronze
Other available, please ask
Application
Usage of H-Type cable and rod combination mesh includes:
Decorative curtains
Exterior facades
Terrace and corridors
Fence and gates
Staircases isolation screen
Wall coverings
Floor covering fabrics
Balustrades
Sunshades and canopies
Infill panels
Partition screens
Elevator cabins screen
H-Type cable and rod combination mesh rolls
Roll length: standard size is 10 m in length. And also can cut to
requested size as customers’ requirement.
Roll width 0.5 m---- 8 m
Other rolls size on request
When ordering or requesting a quote for H-Type cable and rod
combination mesh, please specify:
Number of length 10m with 1 m wide rolls or size required
Cable eg. Numbers x Diameter, 3 x 2.0 mm; Pitch, 80 mm
Rod eg. Diameter, 3.0 mm; Pitch 10 mm
Material eg. Grade 304 stainless steel or Grade 316 stainless steel
