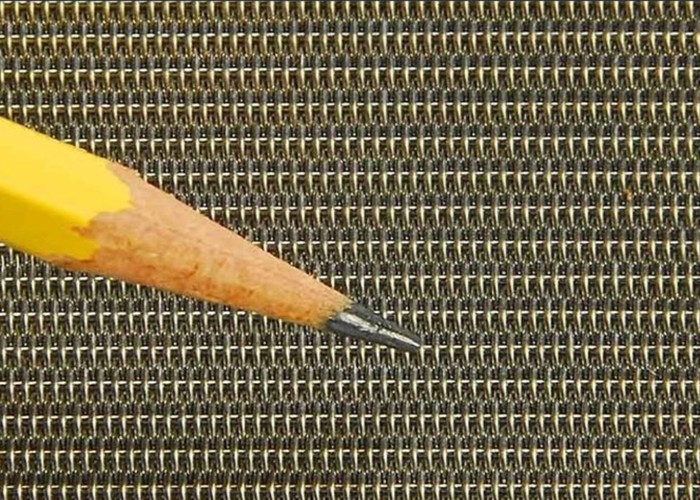

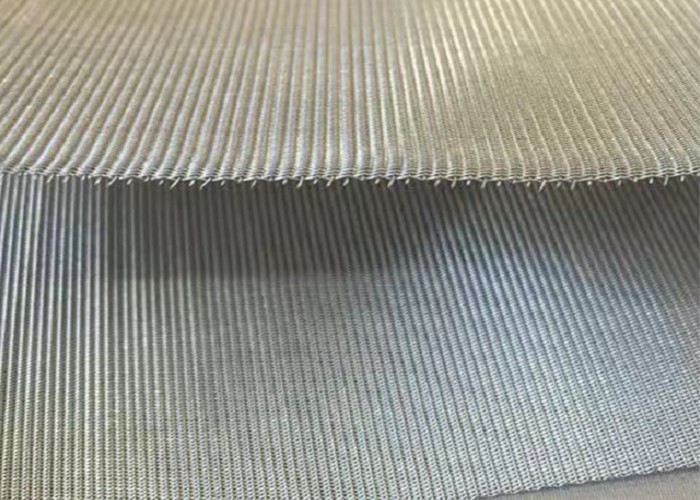

T316 165x1400 Mesh Dutch Weave 10 Micron Filter Cloth

Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.

We fabric woven wire cloth from stainless steel wire with plain dutch weave or twill dutch weave for melt filtration.

Plain dutch weave
The pattern of this mesh is the same as in plain weave except that the warp wires are of a larger diameter than the shute wires and the shute wires are driven up close to each other, resulting in tapers or wedge-shaped opening instead of square opening. In dutch weave the warp wires remain in straight conditions and the shute wires are crimped.

Twilled dutch weave
Wire cloth which has the same pattern as twilled weave except the warp wires are of a larger diameter than the shute wires & the shute wires are driven up tapers or wedge-shaped opening. Warp wires remain in a straight condition, but the shute wires take all the crimp. Due to the twilled weave construction, the shute wires are not only deformed in depth (crimps when formed around the warp wires) but also sideways.

Dutch weave is divided into plain Dutch weave and twill Dutch weave. 165x1400 Mesh uses twill Dutch weave.

Features

10 micron precision woven stainless steel screen

Used in separation, fuel filters, gas diffusers and vents

Light tight mesh

Flow Data is available

Meets ASTM E2814-18

Stainless Steel 316
