Stainless Steel Knitted Wire Mesh Stainless Steel Knitted Mesh
Knitted Stainless Steel Wire Mesh
Stainless steel knitted wire mesh, knitted wire mesh tube,
shielding knitted wire mesh, 304 stainless steel knitted mesh tape

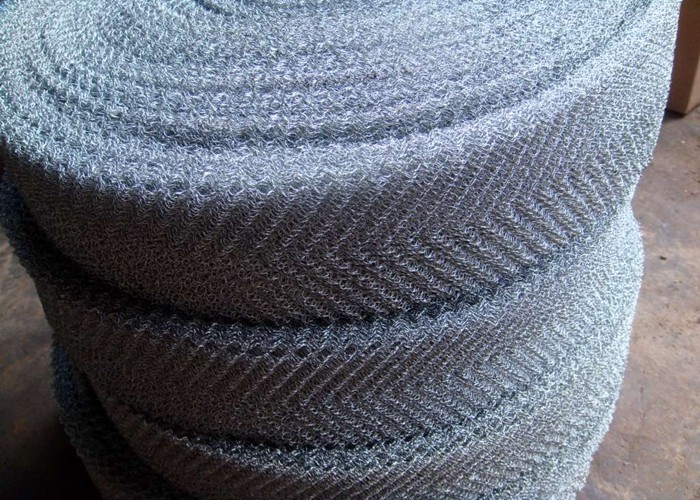

Stainless steel knitted mesh is manufactured by a circular knitting
machine, use stainlesss steel wire as raw material, knitting
monofilament or multifilament wire into a tubular form. Then the
wire mesh be flattened to mesh rolls, and can be also supplied in
corrugated (crimped) form. This production process produces an
extremely strong and flexible sleeve composed of a series of
interlocking rings. It can be made of monofilament or
multifilament.
Monofilament knitted mesh is the most commonly used type and can be
used for general applications, while multifilament woven mesh has
higher strength and bearing capacity and can be used for heavy
applications. Stainless steel knitted wire mesh are most commonly
used in the filtration & separation industries and EMI & RFI
shielding industries.
We can offer stainless steel knitted wire mesh in the standard
specifications, opening sizes range from 1 mm x 1 mm to 10 mm x 10
mm, while wire diameters range from 0.10 mm to 0.45 mm. Depending
on the specification, and the manufactured width is between 3 mm
and 600 mm. The standard materials are Grade 304 and Grade 316
stainless steel.
Features
High strength and overall rigidity
Excellent filtration accuracy
Excellent corrosion resistance, alkali and acid resistance, heat
resistance
Excellent shielding performance.
Long-lasting
Stainless steel knitted wire mesh materials
Stainless steel knitted wire mesh is available in three series of
different wire materials:
200 series: Grade 201 (1.4372), Grade 202 (1.4373)
300 series: Grade 304 (1.4301), Grade 316 (1.4401), Grade 321
(1.4541)
400 series: Grade 410 (1.4006), Grade 420 (1.4021 ), Grade 430
(1.4016)
Others available, please ask
Application
Usage of stainless steel knitted wire mesh includes:
In the architectural & decorative industries, for the screen of
garden.
Sealing, shock-absorbing, muffler and exhaust gas purification
components of auto parts
It can be made into a defogging pad to eliminate mist.
In the EMI & RFI shielding industries, for elastomer cores and
cable wrap.
In the filtration & separation industries, for the screen of the
demister pads, coalescers (Reactor Internals) and range hood
screen.
In the automobile industries, for airbags, anti vibration and
mufflers & silencers.
Weave type

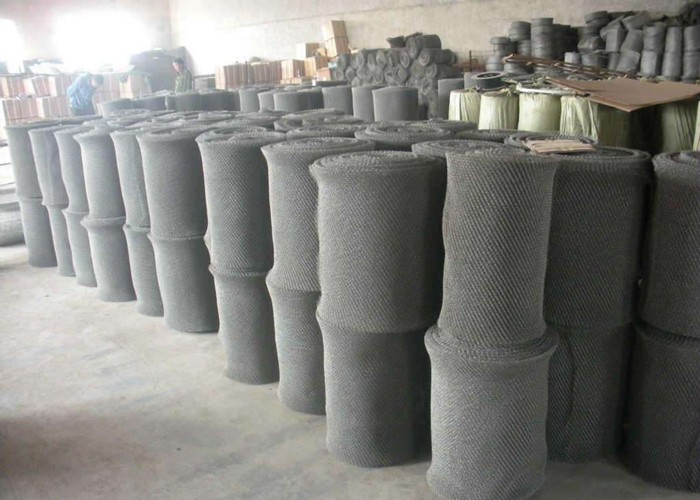

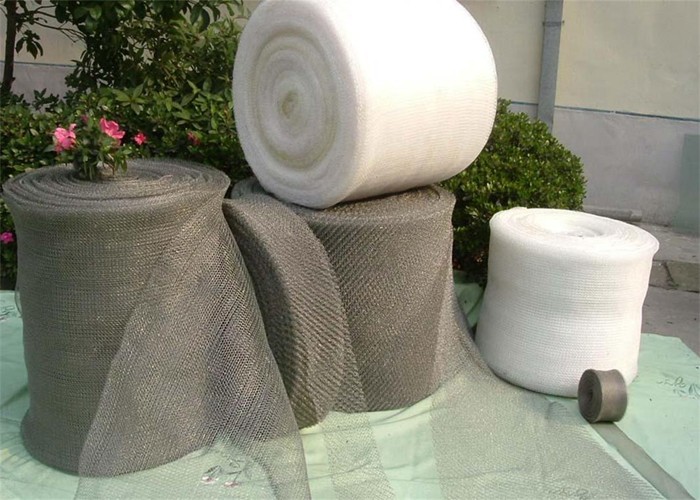

Stainless steel knitted wire mesh rolls
Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on
flat)
Roll length 15 m, 30 m, 50 m to 200m
Other rolls size on request
When ordering or requesting a quote for stainless steel knitted
wire mesh, please specify:
Number of length 30 m rolls or size required
Width eg. 100 mm
Diameter of wire eg. 0.23 mm
Aperture eg. 3 mm x 5 mm
Material eg. Grade 304
