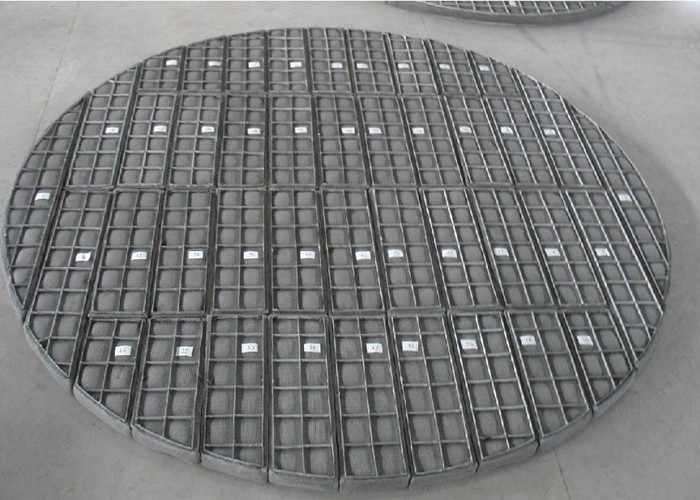

Stainless Steel Demister Pad Stainless Steel Rope Mesh For
Gas-Liquid Separation
The stainless steel demister pad not only has excellent chemical
stability, it also has high separating efficiency and temperature
resistance performance. Stainless steel demister pad is the most
widely used type among all the metal demister pad. Stainless steel
demister pad for separation of entrained droplets of gas tower to
ensure that there is mass transfer efficiency and reduce the value
of material losses and the operation of the compressor to improve
the tower, most people set the wire in the top of the tower mesh
demister. Can effectively remove the 3 - 5um the droplet, if the
settings between trays demister, not only to ensure the efficiency
of mass transfer tray, also can reduce the board space.
Demister Pad:
Material: 304,304L,316,316L
Diameter:300mm--6400mm
Popular specs of stainless steel demister pad
• Demister pad size: 442 mm diameter × 150 mm thickness.
• Demister pad size: 2290 mm diameter × 100 mm thickness.
• Demister pad size: 11-1/4" width × 1" thickness × 118" length.
• Demister pad size: 11-7/8" width × 1" thickness × 142" length.
• Demister pad size: 14-5/6" width × 1" thickness × 142" length.
Models in domestic and other companies |
Density
(kg/m3) | Free volume
(%) | Surface area
(m2/m3) | Domestic model | Other companies model |
| Metex | York | Becoil | Knitmesh | Vico-tex | Uop | Koch | Acs |
| 80 | 99.0 | 158 | H | Hi-Thruput | 931 | 954 | 4536 | 160 | B | 511 | 7CA |
| 120 | 98.5 | 210 | L | | 422 | | | | | | |
| 144 | 98.2 | 280 | N | Nu-Standard | 431 | | 9030 | 280 | A | 911 | 4CA |
| 128 | 98.4 | 460 | SN | | 326 | | | 415 | | 706 | |
| 193 | 97.5 | 375 | SL | Xtra-Dense | 421 | 890 | 9033 | 380 | C | 1211 | 4BA |
| 300 | 96.2 | 575 | SM | | | | | | | | |
| 390 | 95.0 | 750 | SH | | | | | | | | |
| 220 | 97.2 | 905 | T | | | | | | | | |
| 432 | 94.5 | 1780 | R | Multi-Strand | 333 | | | 800 | | | |
| 220 | 97.2 | 428 | W | Wound | | | | | | | |
| 160 | 96.7 | 5000 | GS | | 371 | | | | | | |
Stainless steel demister pad is mainly used for gas-liquid
separation. Widely used in chemical, petroleum, tower
manufacturing, pressure vessels and other industries in the
gas-liquid separation device. Also for the air filter for gas
separation. In addition, demister screen can be used as instruments
of industrial instrumentation in the various buffers to prevent
electrical interference shielding of electronic devices.
Demister pads standard: HG / T 21618 - 1998
Features of stainless steel demister pad
• High corrosion and rust resistance.
• Acid, alkali and salty resistance.
• High mechanical strength.
• High filtering efficiency.
• Durable and long service life.
• Various types for choice.
• Convenient for installing and transporting.
