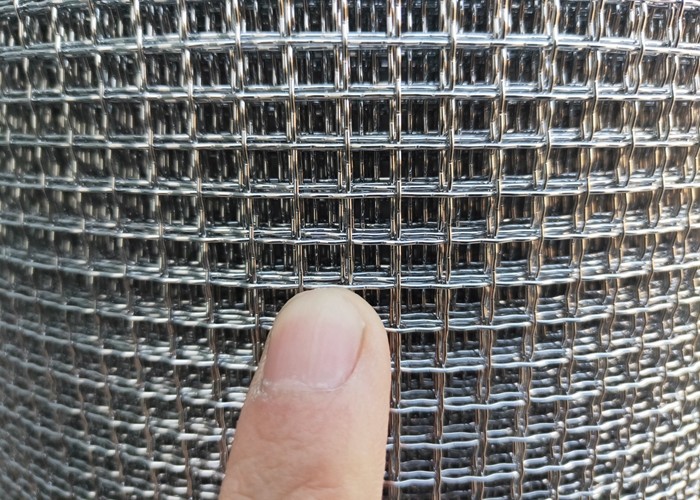

304 Intermediate Crimped Wire Mesh 316Intercrimped Wire Msh Crimped
Wire Mesh Weaving
Intercrimped weave is a type of pre-crimped weave that both of warp
wire and weft wires intersection occur at the points of every odd
number (three, five, seven etc.) crimps or corrugations, and the
larger opening size with the more number of crimps. The
intercrimped weave allows for square and rectangular openings in a
variety of sizes, and usually provide larger openings in relation
to the lighter wire size. Since it offers greater stability,
tightness of weave and maximum rigidity, it is widely used for wall
decoration, doors, ceiling and roofing decorations and also at
different sites of the building. It is further used for fixed
partitions or isolations in architectural uses.
Intermediate crimped wire mesh / screen is also known as intercrimp
wire mesh or multiple crimp wire mesh. The wire mesh is
manufactured by precision weaving machines, both of the warp wire
and weft wire are pre-crimped before the wire mesh is woven.
Intercrimped wire mesh are the most widely used in the construction
and automobile industries.
We can offer intermediate crimped wire mesh in the standard
specifications, opening sizes range from 5.0 mm to 100.0 mm, while
wire diameters range from 0.6 mm to 5.8 mm, and manufacture width
is up to 4 m. The standard materials of intercrimp wire mesh are
carbon steel and stainless steel.
Benefits
Large opening up to 100 mm
Intercrimped assure the proper locking of the warp and weft wires
Superior rigidity and greater stability
Strong wear resistance and firm structure
Intermediate crimped wire mesh materials
Intermediate crimped wire mesh is available in five different
series of wire materials:
Stainless steel: 201, 304,304L, 316,316L, 321, 310, 310S
Carbon/plain steel: low carbon steel, mild carbon steel, high
carbon steel
Copper: brass, pure copper, phosphor bronze
Nickel: pure nickel, nickel alloy, monel
Aluminum: 1050, 1060, 1100, 5052, 5056
Other available, please ask
Application
Usage of intermediate crimped wire mesh includes:
In the agricultural & food industries, for barbecue grills.
In the architectural & decorative industries, for the screen of
window, fireplace, fence and ceiling.
In the automobile industries, for radiator grills and headlight
covers.
In the petrochemical & chemical industries, for test sieve.
In the mining & aggregate industries, for the screens of vibrating
machine.
Intermediate crimped wire mesh rolls
Roll width 1m—4m
Roll length 10m---60m
Other rolls size on request
Intermediate crimped wire mesh panels
Mesh Panel Width: 0.5 m---2 m
Mesh Panel Length: 1 m---- 6 m
Other sheets size on request
When ordering or requesting a quote for inter crimped wire
mesh/screen, please specify:
Crimp style eg. Single Inter crimp weave
Aperture eg. 12.7 mm
Diameter of wire eg. 2.0 mm
Material eg. Grade 304
Number of length 30 m for 1 m wide rolls or size required
