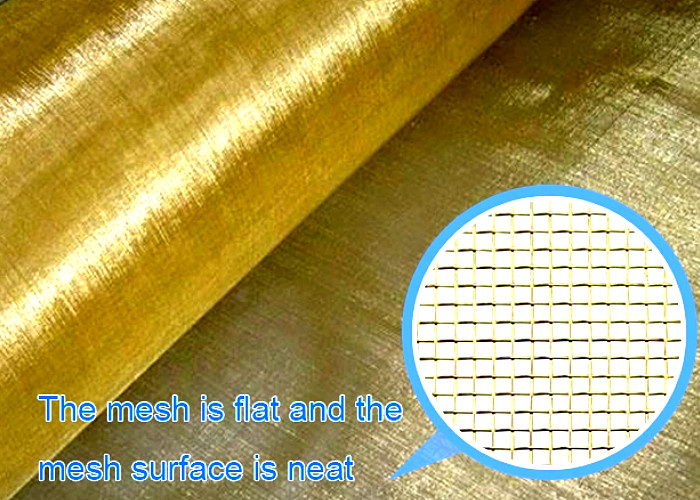

20 Micron 25 32 42 Um Square Weave Brass Wire Mesh
Brass Wire Mesh Introduction
Brass wire mesh is normally called Brass mesh cloth, is made of
brass wire. The material of brass wire could be divided into 65
brass, 70 brass and 80 brass. Warp and weft wires normally have the
same diameter. Brass mesh and brass wire cloth have better abrasion
and corrosion resistance, better tensile strength, lower
electricity and heat conductivity compared with copper mesh cloth.
They are widely used in sieving and filtering granule, powder,
porcelain clay and glass, chinaware printing, grain, filtering
liquid and gas, also used as decorative mesh.
Brass Wire Mesh Specifications
| Material: | 65 brass (65% copper and 35%zinc). |
| 70 brass (70% copper and 30% zinc). |
| 80 brass (80% copper and 20% zinc). |
| Weaving type: | Plain weave,Twill weave,Dutch weave. |
| Width of brass mesh/cloth: | 0.5-2 m (can be customized) |
| Length of brass mesh/cloth: | 10-50 m (can be customized). |
| Hole shape: | Square, Rectangle |
| Color: | Golden |
| Brass mesh and brass wire close specification |
| Mesh/inch | Wire diameter | Opening |
| mm | inch | mm |
| 2 | 2.03 | 0.8 | 10.67 |
| 2 | 1.8 | 0.072 | 10.9 |
| 2 | 1.6 | 0.063 | 11,10 |
| 3 | 1.6 | 0.063 | 6.87 |
| 4 | 1.194 | 0.047 | 5.16 |
| 5 | 0.91 | 0.035 | 4.17 |
| 8 | 0.711 | 0.028 | 2.46 |
| 6 | 0.8 | 0.032 | 3.43 |
| 6 | 0.711 | 0.028 | 3.52 |
| 8 | 0.61 | 0.024 | 2.57 |
| 8 | 0.559 | 0.022 | 2.62 |
| 10 | 0.635 | 0.025 | 1.9 |
| 10 | 0.559 | 0.022 | 1.98 |
| 10 | 0.508 | 0.02 | 2.03 |
| * Mesh size and wire diameter can be customized according to
special needs. |
Brass Wire Mesh Application
- Decorative mesh for lamps, cabinets and entertainment centers.
- Plumbing screen, filter discs, fireplace screen, window and porch
screen.
- Sculpture, craft, BBQ grill.
- Filter in food, mine, paper making, machine, pharmaceutical,
chemical, metallurgy, industry, electricity, commercial and so on.
- Sieving and filtering granule, powder, porcelain clay and glass,
chinaware printing, grain, fltering liquid and gas.
Why Choose Us ?
1 Rich experience production team
Our company was established in 2009 and it has 5000 m2 production
workshop, Hundreds of skille technicians, Dozens of production and
processing lines. We have many years of experience in the wi mesh
field
2 Professional quality inspection system
We have a strict quality inspection system and a professional
testing team, we guarantee product quality
3 Perfect service system
- 24 hours on-line service
- Free samples if stocked
- Quality problem we could accept the products returm
- Competitive price with superior higher quality products
- Professional team to solve all your questions
Packing detail :
Inside the roll with paper tube to reduce the pressure while
loading, then wrapped with plastic flm as well
as woven bag on the finished roll, final loaded in the strong
wooden box.
